Sonoma Restaurant- Brewery

Sonoma, CA

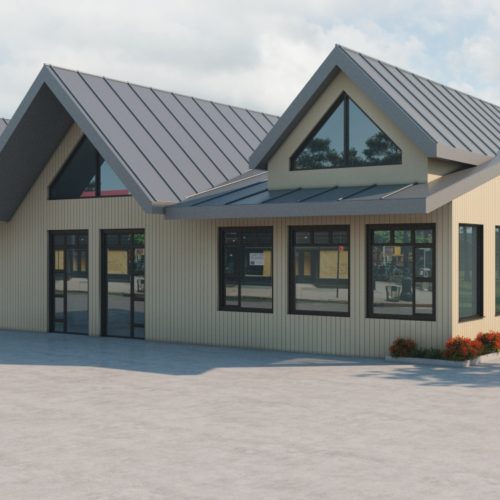

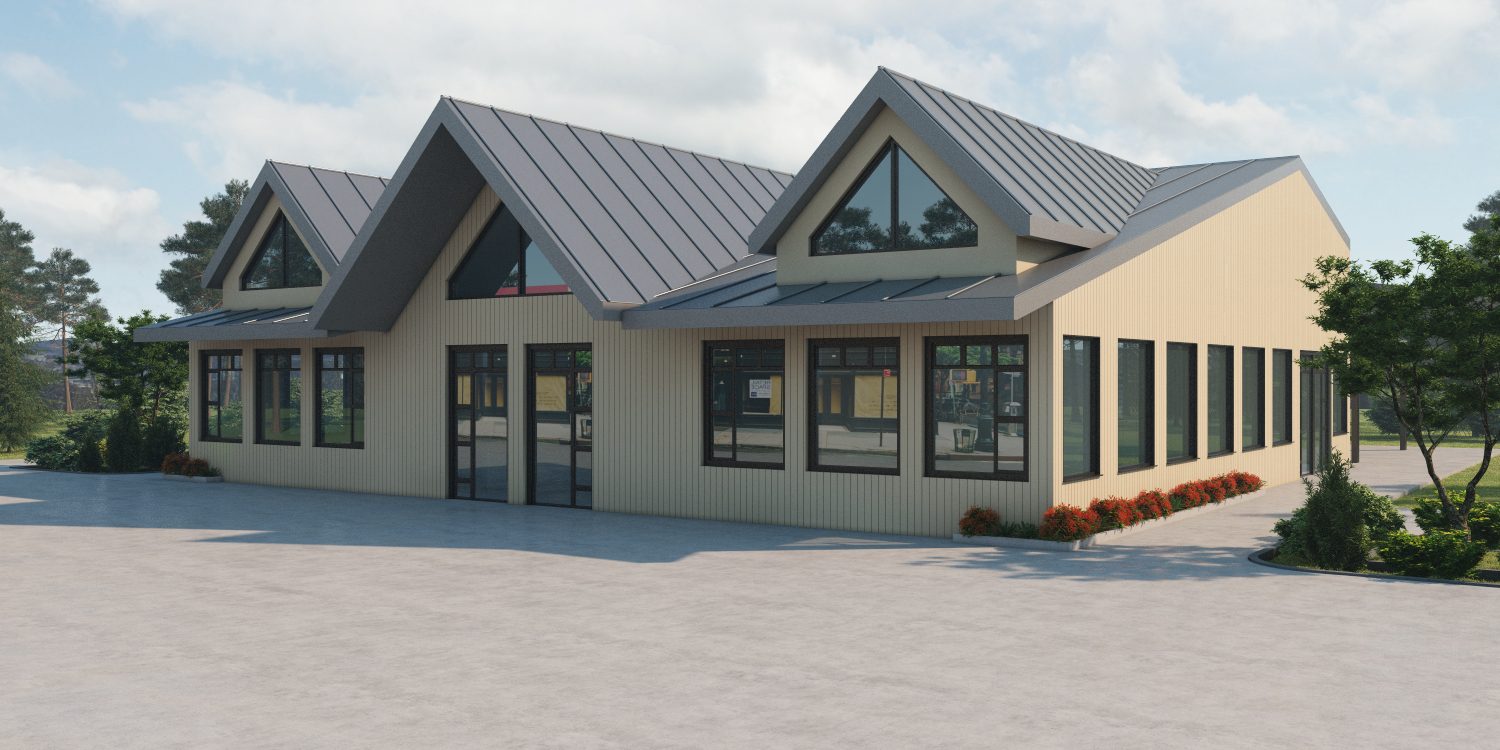

Sonoma Commercial Steel Construction This custom EcoSteel engineered building system creates a wide open/ clear span space for flexibility of use. The high vaulted ceilings do not require bottom chord trusses which is common with lumber framing. Along with this, the prefab restaurant has a clear span floor. The floor incorporates walls of glass, which is achieved by Moment Frame…

Sonoma Restaurant- Brewery

Sonoma Commercial Steel Construction

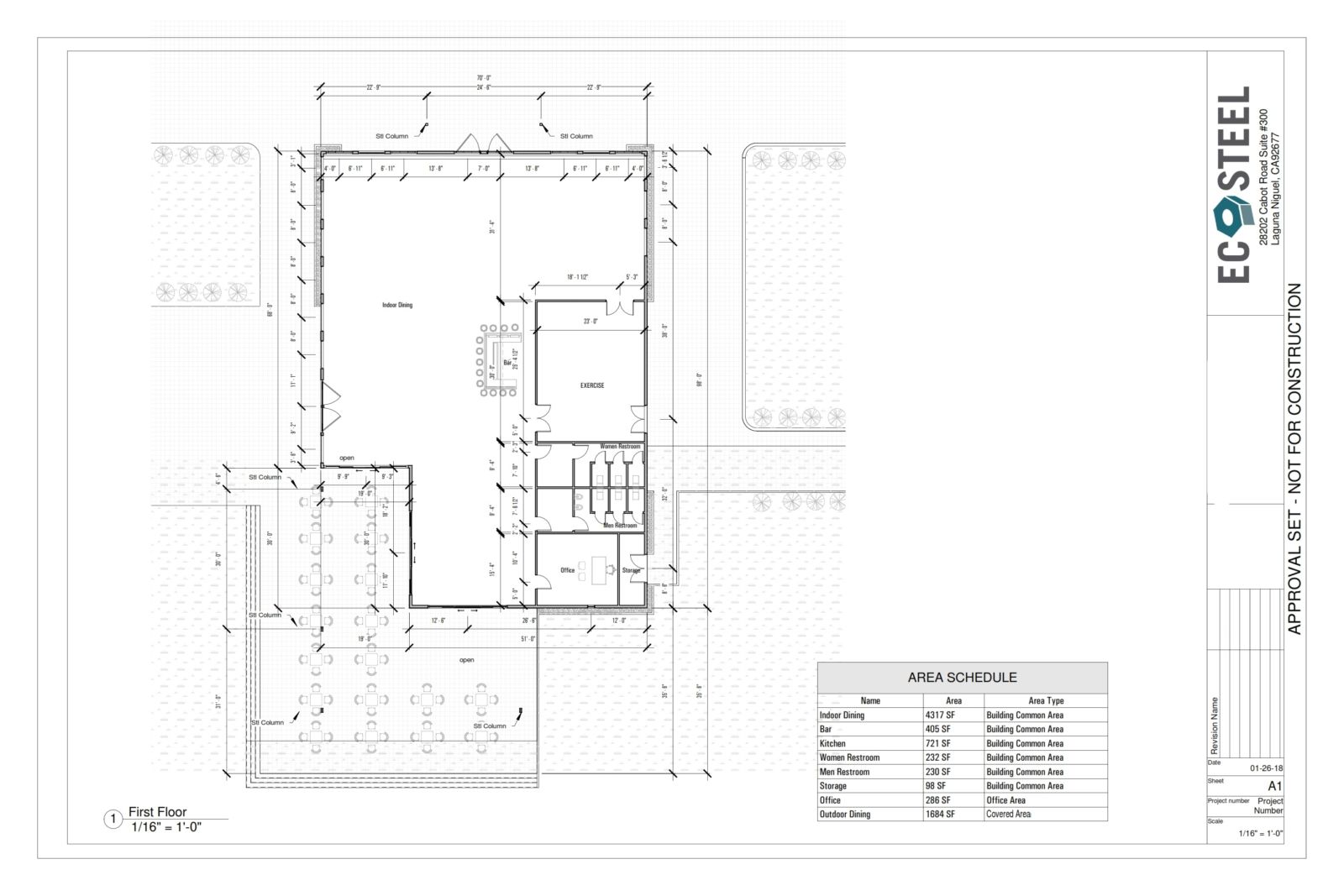

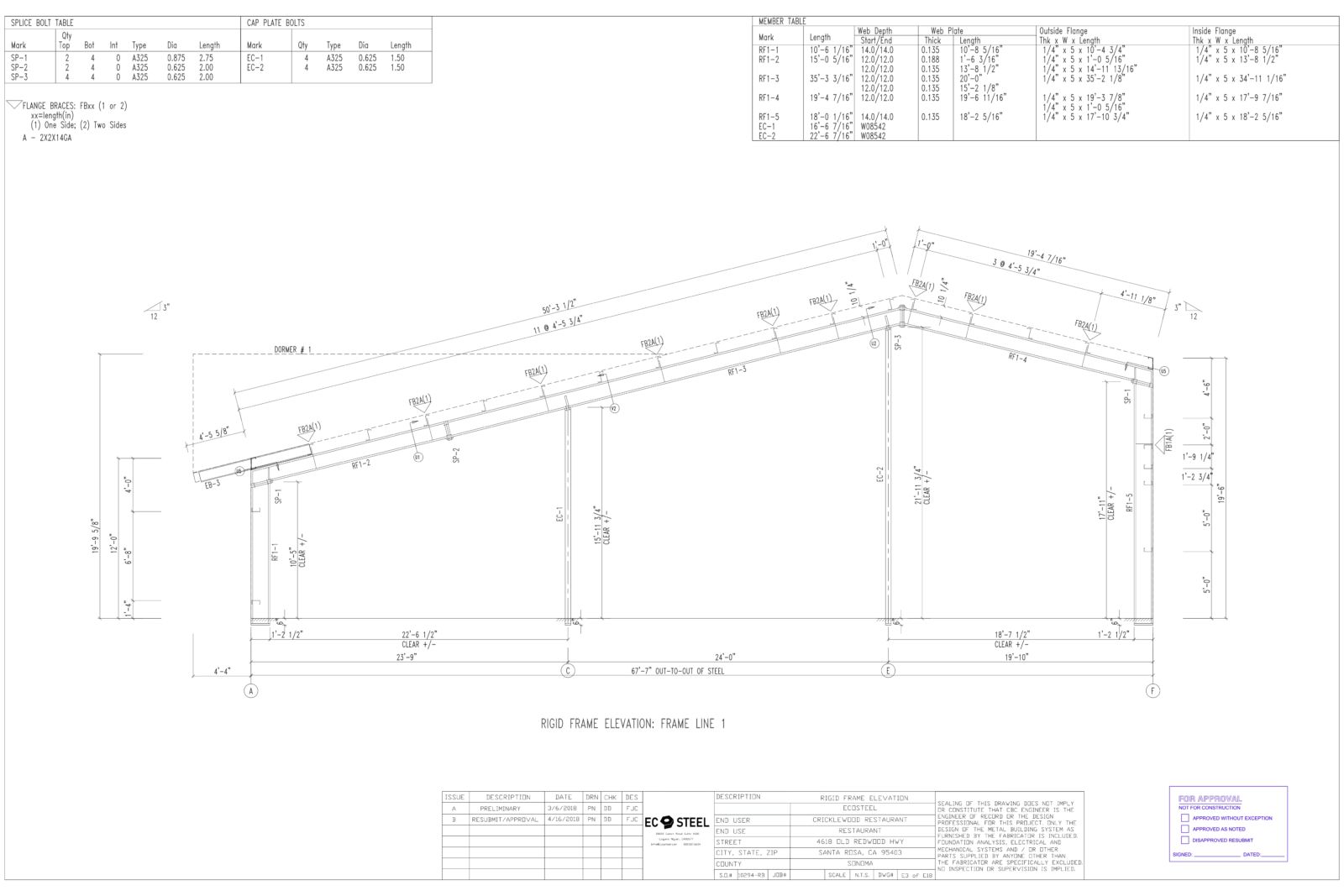

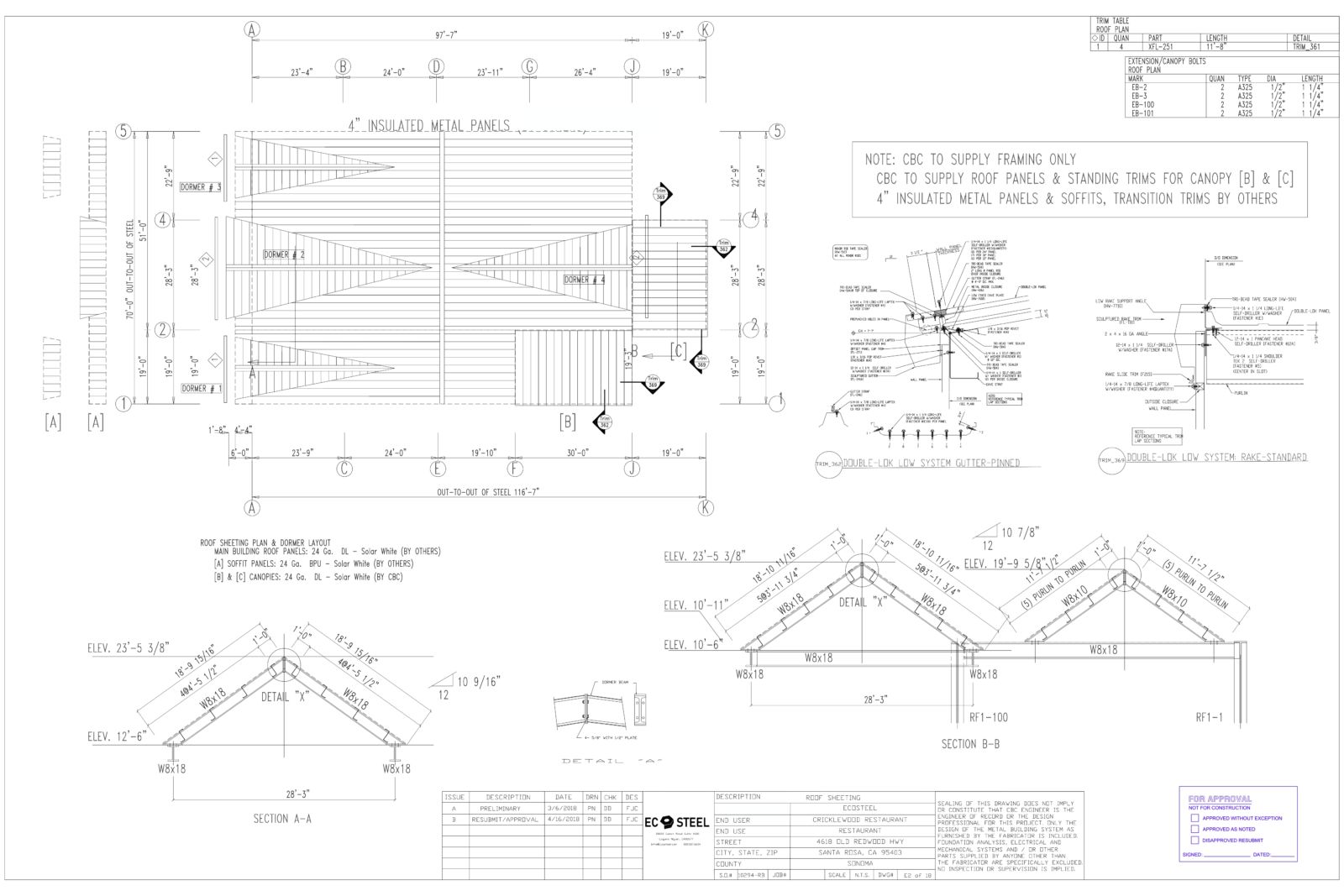

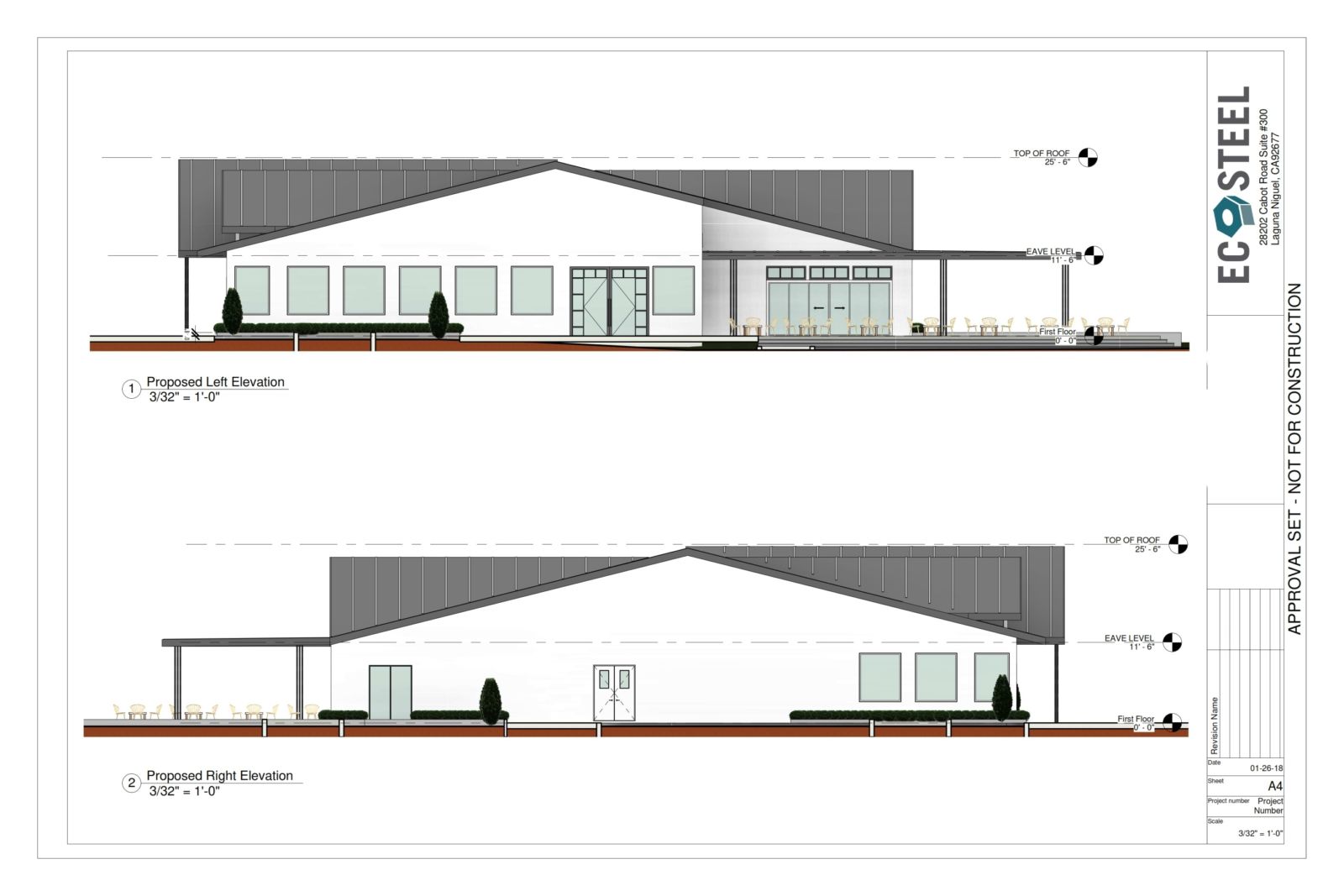

This custom EcoSteel engineered building system creates a wide open/ clear span space for flexibility of use. The high vaulted ceilings do not require bottom chord trusses which is common with lumber framing. Along with this, the prefab restaurant has a clear span floor. The floor incorporates walls of glass, which is achieved by Moment Frame Engineering. The insulated steel roof and wall panels provide superior thermal properties over traditional lumber frame and fiberglass insulation. Fire Resistant & Energy Efficient Design- ready for tenant improvement work with open wall steel frame construction.

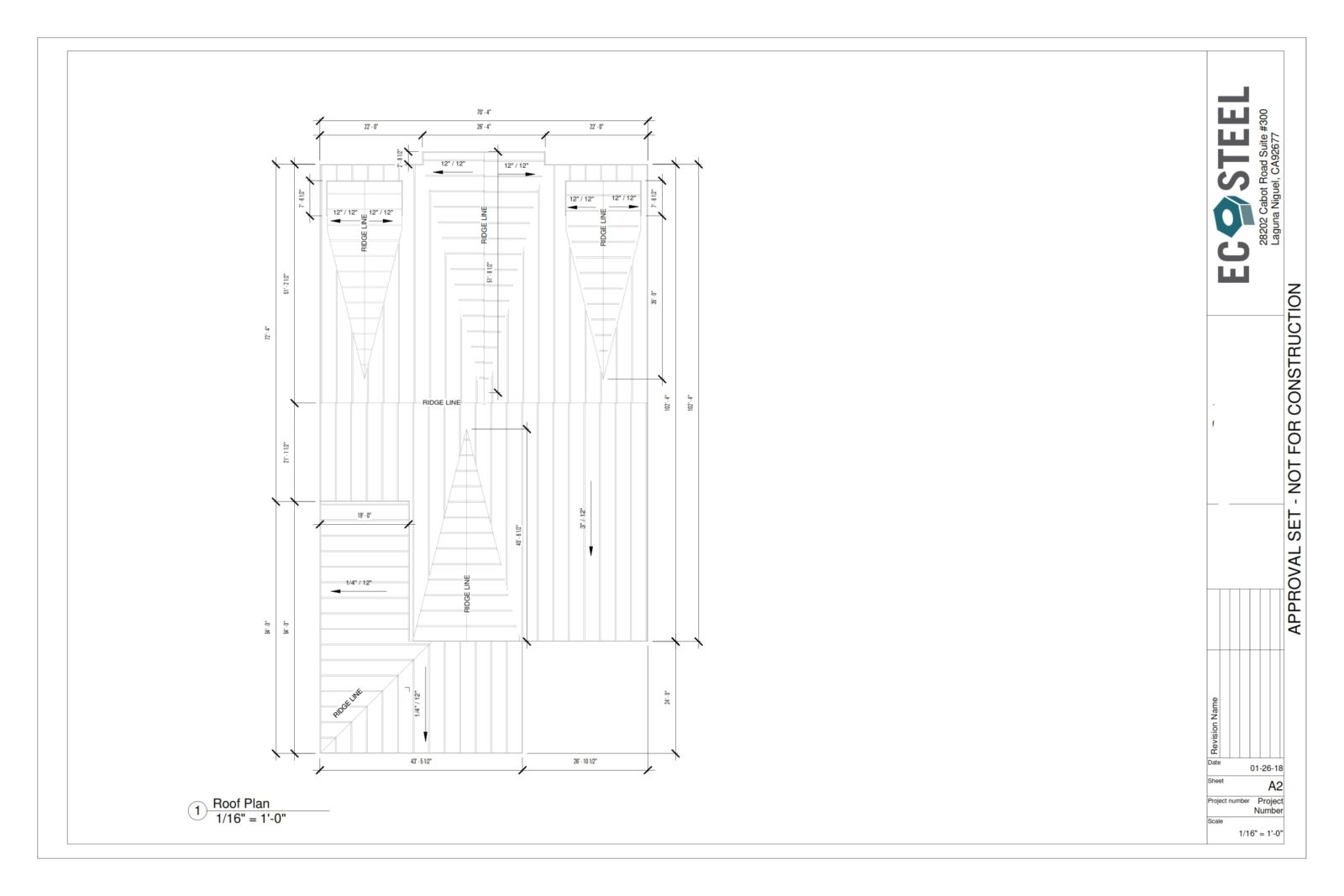

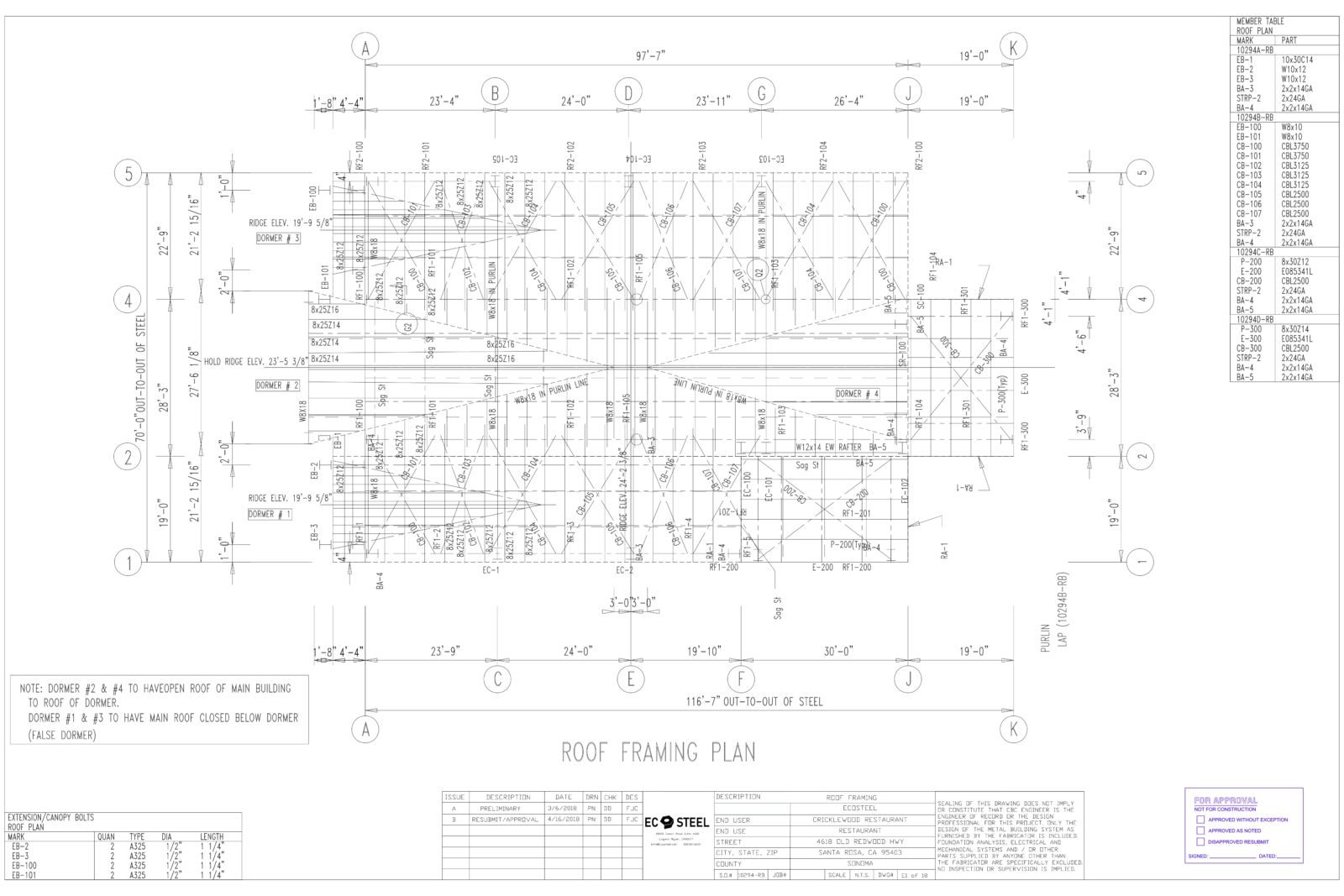

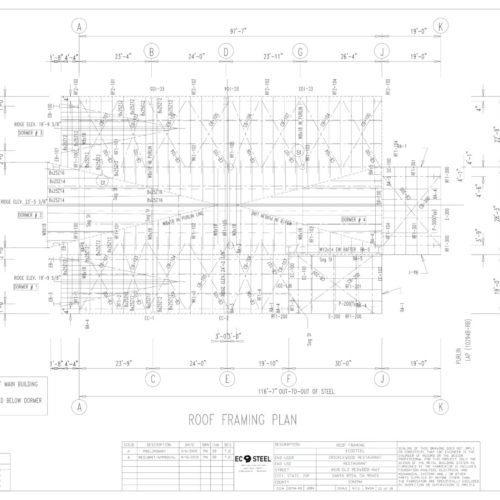

This all steel, 2 Hour Fire Rated prefabricated commercial steel building provides unmatched durability and security for generations of use. The standing seam roof is ” Solar Ready” with panel clip attachments, EcoSteel is pushing for Net Zero Commercial Buildings by 2022. The Fire Rated steel wall panels provide Title 24 Energy Code Compliance for California along with Urban Wildfire specifications for flame prevention.

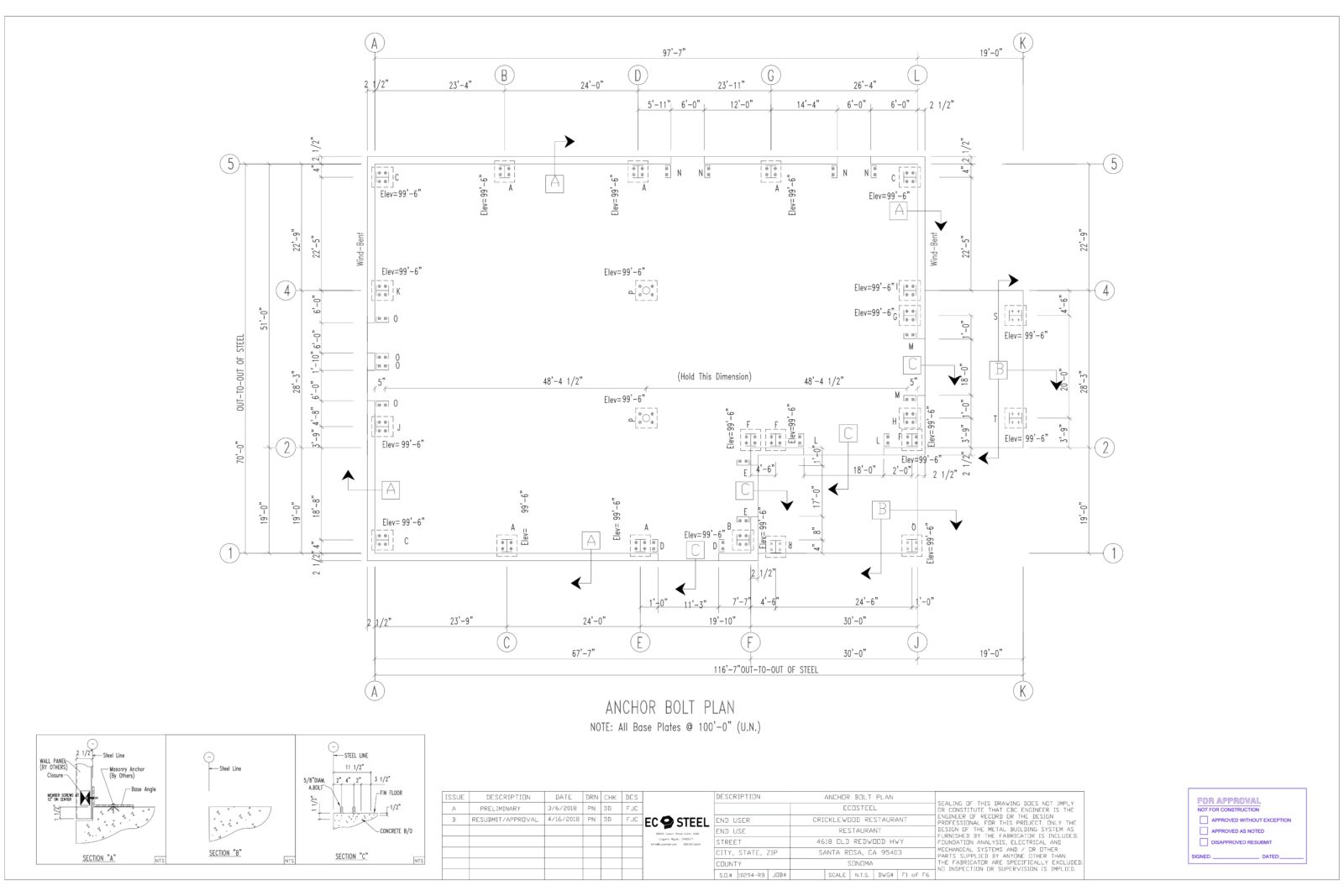

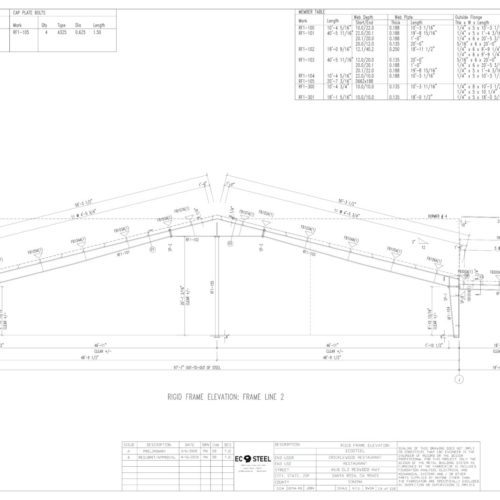

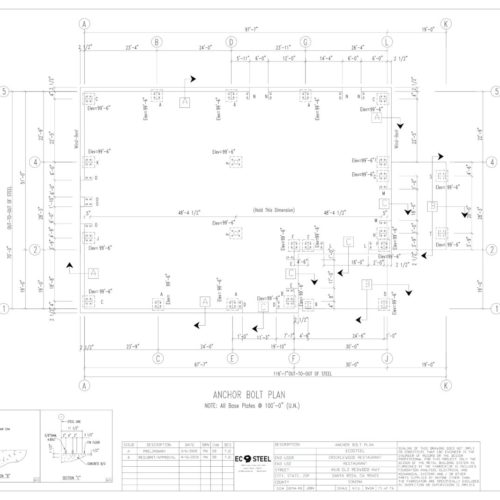

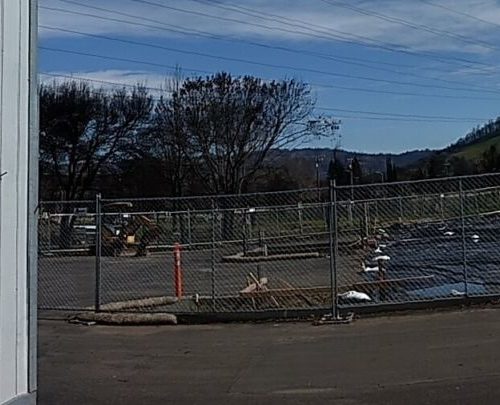

Bolted steel frame systems are prefabricated in the factory for fast assembly on site by a qualified steel building erector. The concrete foundation has anchor bolts in place to erect steel from day one of delivery. We strive to eliminate field welding whenever possible to create unlimited structural steel design creativity.

Ready to build with EcoSteel? Contact Us Here
